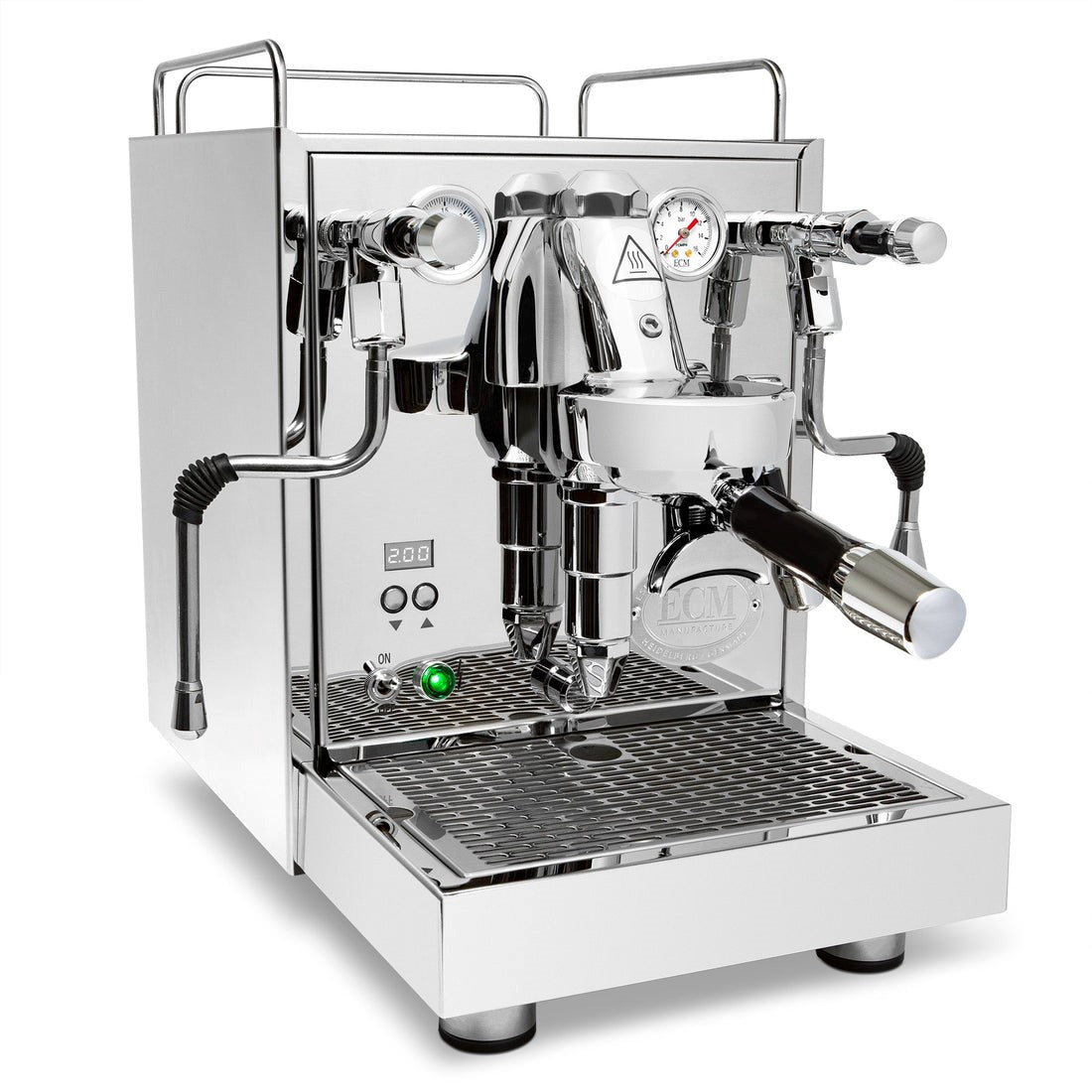

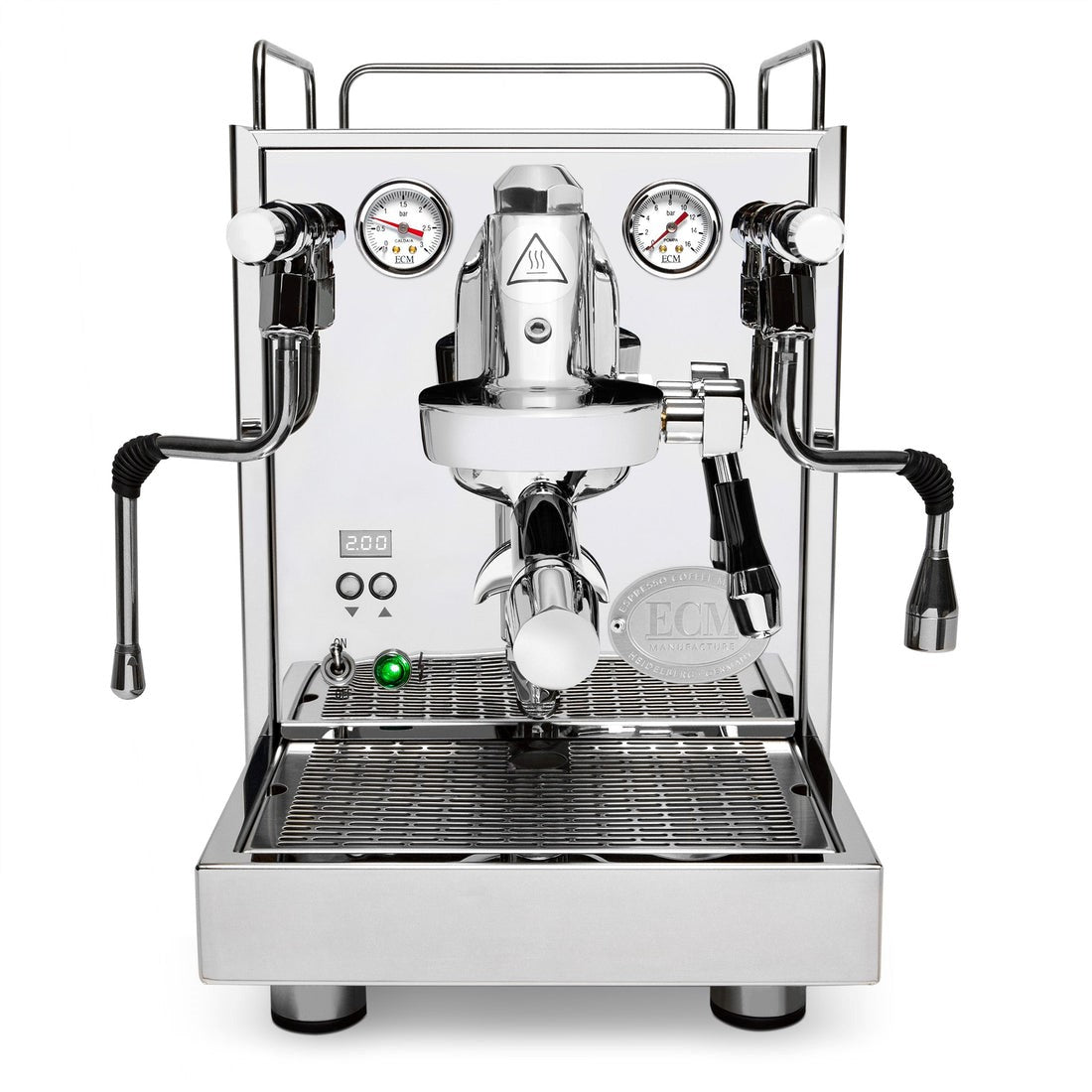

ECM Mechanika Max with PID

ECM Mechanika Max with PID

Regular price $3,799.00 CAD
Regular price Sale price $3,799.00 CAD
Sale Sold out
Shipping calculated at checkout.
Quantity

The ECM Mechanika Max Espresso Machine with PID is a state-of-the-art Heat Exchanger System designed for the discerning home barista. This machine combines the powerful, quiet operation of a rotary pump with ECM's innovative Smart HX® technology to deliver unparalleled temperature stability and control.

The Mechanika Max eliminates guesswork with the built-in Flush Advisor and allows you to precisely dial in your shot with dedicated Brew Temperature Control via the intuitive PID controller. Built with a high-end ECM E61 brew group featuring an innovative stainless steel construction, and housed in a classic mirror-finish stainless steel body, the Mechanika Max is the perfect centerpiece for your coffee setup, offering commercial-grade performance with user-friendly smart features.

Key Features:

Smart HX Technology: Intelligent heat exchanger management featuring a Flush Advisor and direct brew temperature control.

PID Controller: Provides a range of convenient and user-friendly smart features, including programmable timer functions for automatic on/off times.

Adjustable Pre-infusion: Offers active and passive pre-infusion settings that can be separately defined for optimal extraction.

Quiet Rotary Pump: Ensures robust and silent performance, ideal for home environments.

High-End ECM Brew Group: Features an innovative stainless steel construction for superior temperature stability and durability.

Switchable Water Source: Easily switch between using the internal water tank or a fixed water connection (direct water supply).

Technical Specifications:

System: Heat Exchanger (HX)

Pump Type: Rotary Pump

Boiler Volume: approx. 1.9 l

Boiler Material: Stainless steel

Water Tank Capacity: approx. 3 l

Brew Group: ECM Brew Group

Control: PID control and Display

Pressure Gauges: Boiler pressure gauge and Pump pressure gauge

Accessories: Includes 2 ECM portafilters (1 spout, 2 spouts)

Weight: 23.5 kg

Dimensions (w x d x h, without portafilter): 275 x 445 x 405 mm

Cup Warming: Features a removable cup warming tray

The ECM Mechanika Max is a precision-engineered masterpiece that delivers coffee excellence.
